Yuchai S35

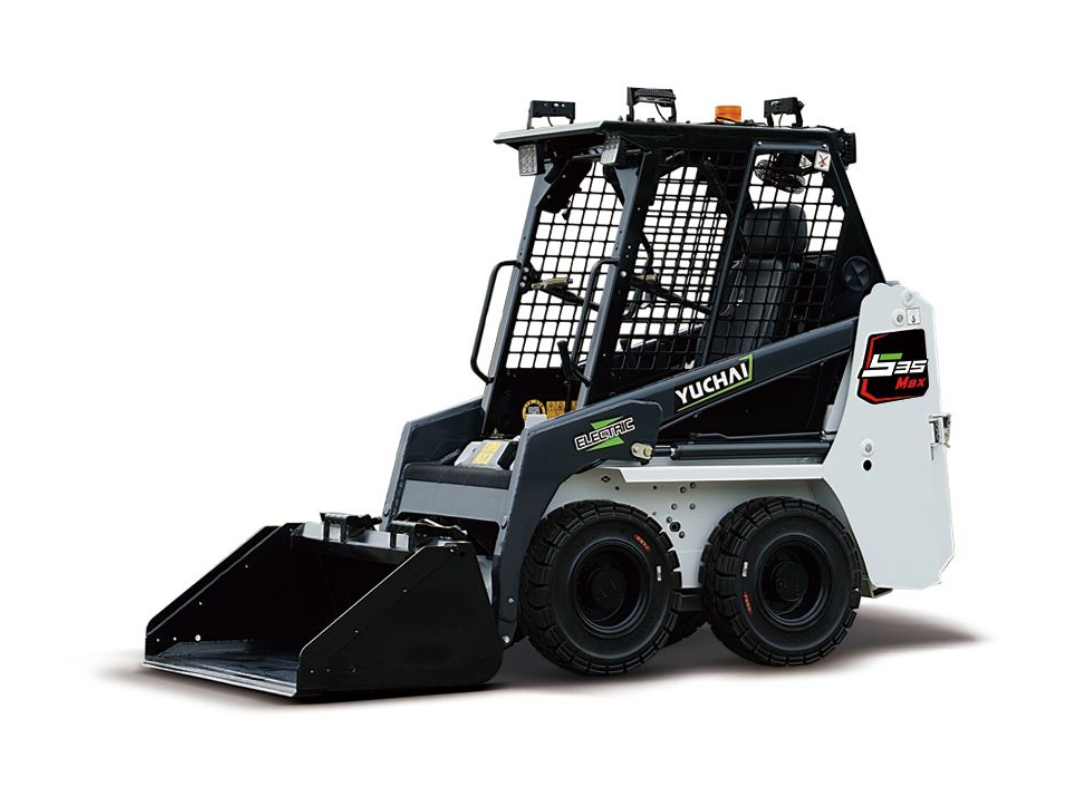

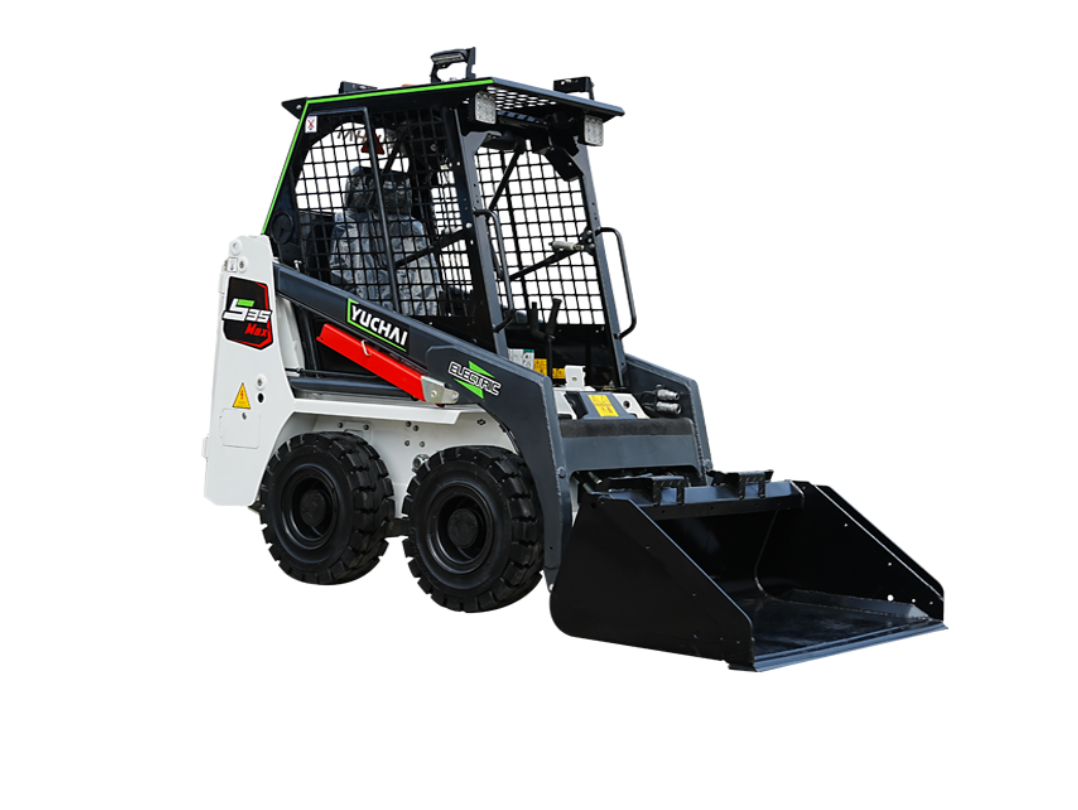

The Yuchai S35Max electric skid steer loader features with global firstwheel side motor driving and AUTo HOLD technology, ensuring stability, reliability,and safety.

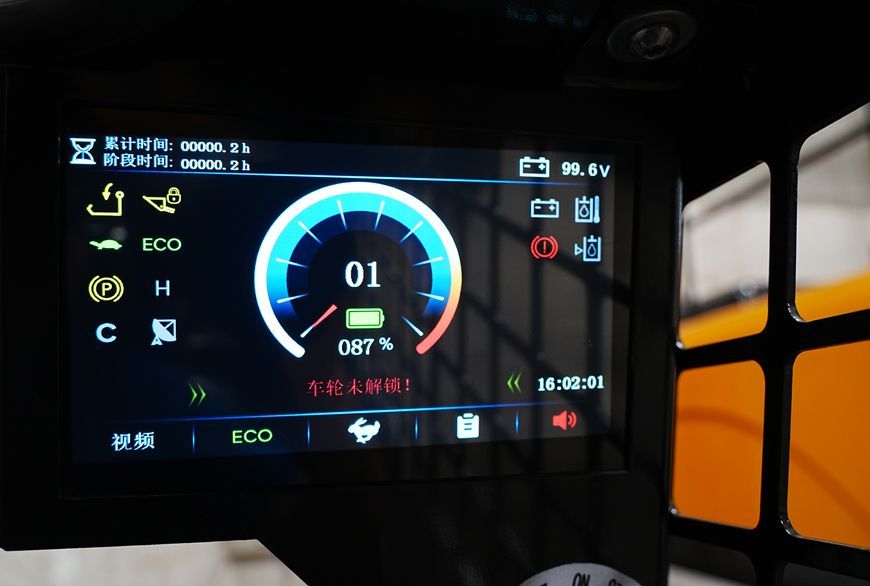

  1. Electric drive control intelligent mode
  2. Global first wheel side motor driving technology
  3. Global first wheel side AUTO-HOLD technology
  4. Integrated chassis
  5. Electric drive control intelligent mode
  6. Battery life increased by 32%

Powerful electric engine

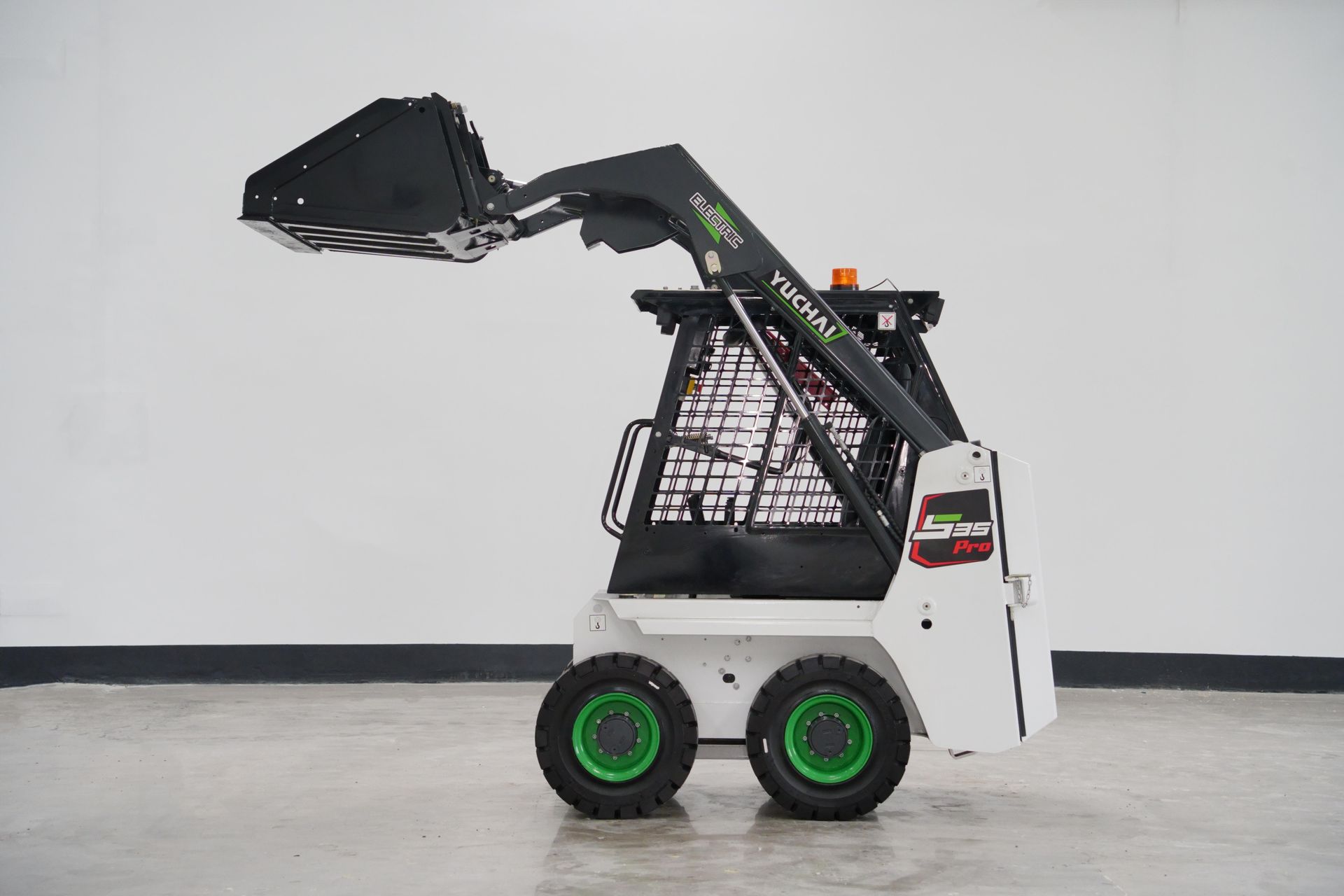

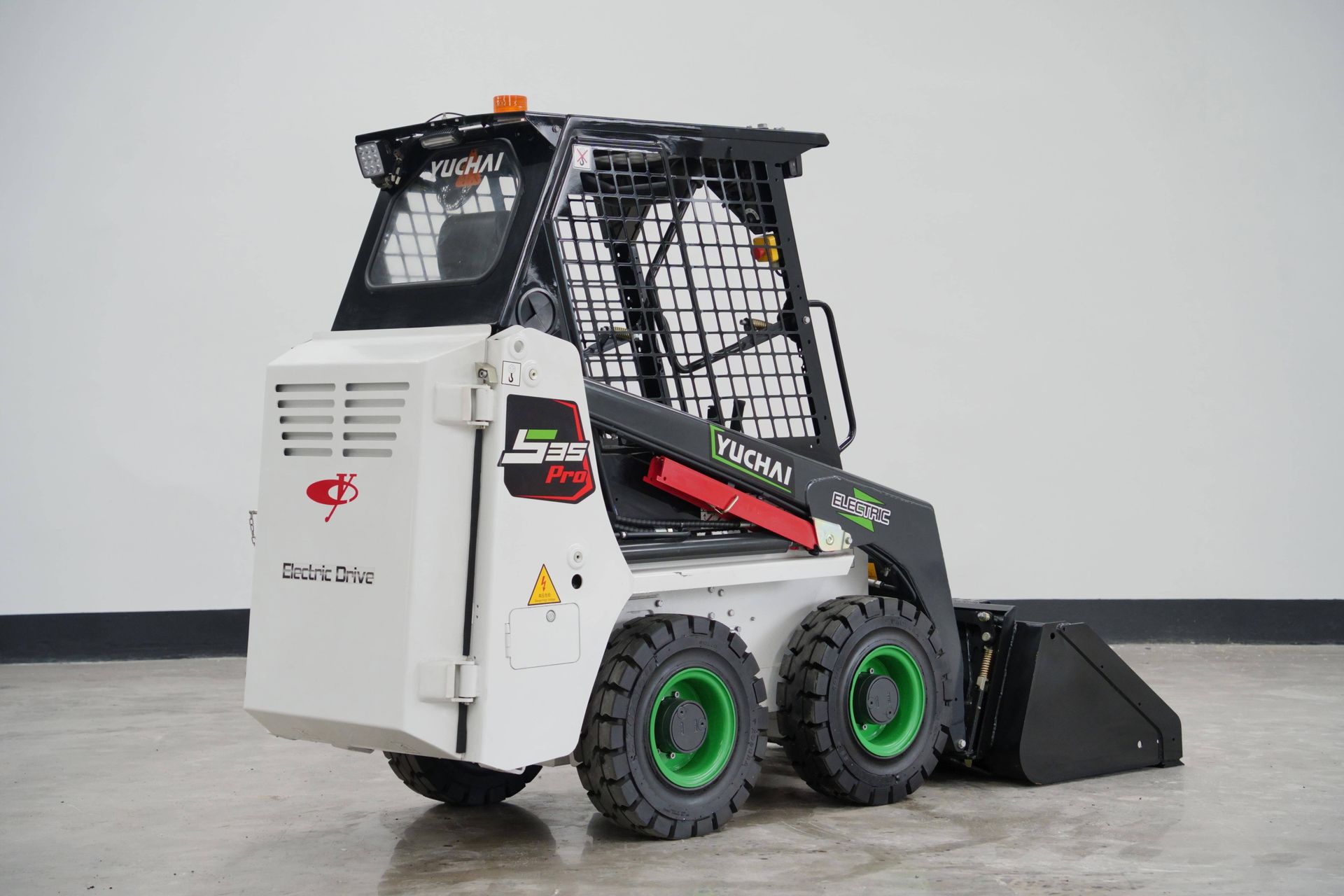

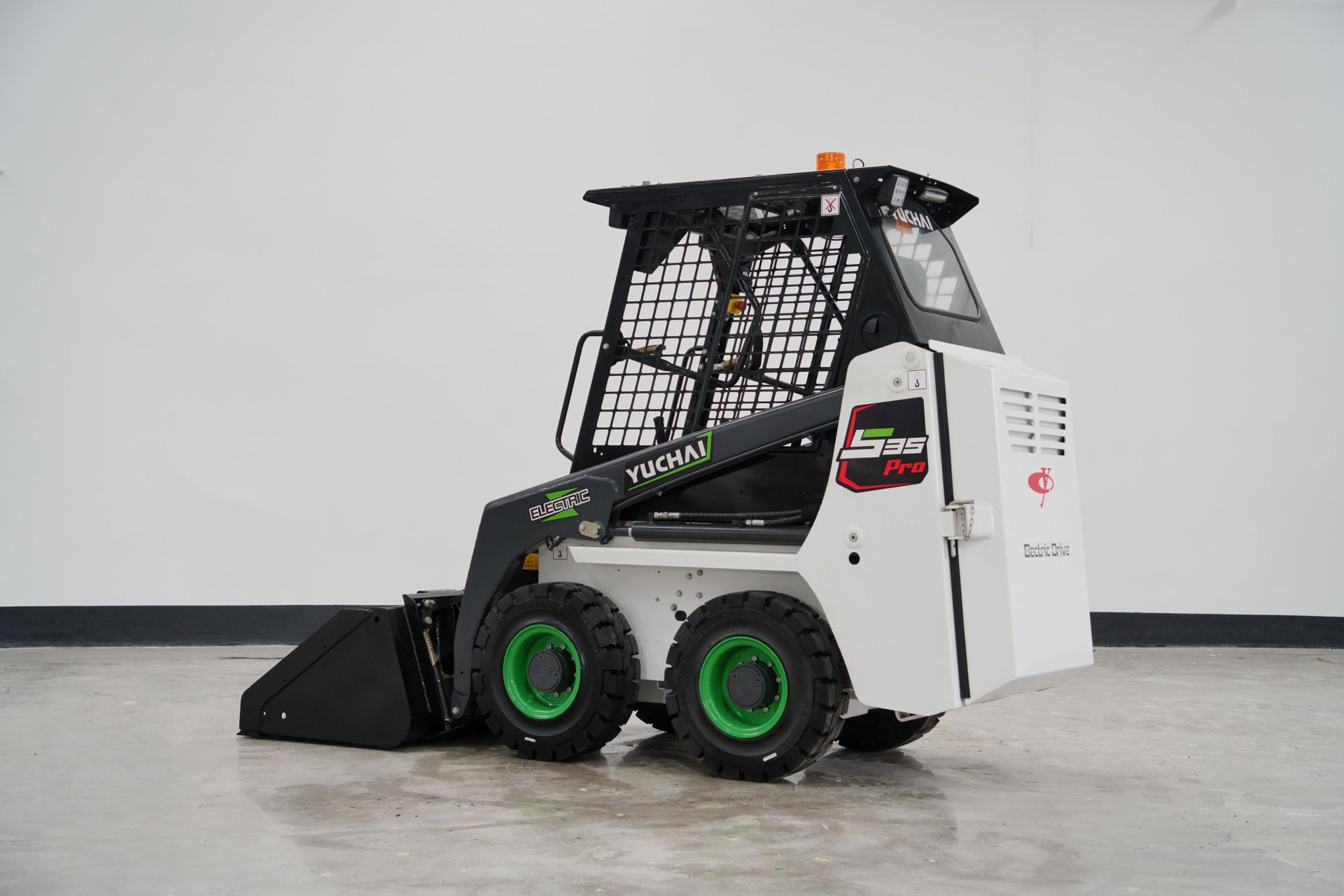

The Yuchai S35Pro electric skid steer loader features with global firstwheel side motor driving and AUTo HOLD technology, ensuring stability, reliability,and safety. lts compact design and excellent maneuverability make it ideal forextremely narrow spaces, easily navigating corridors, aisles, alleys, and low-heightareas. lt can be equipped with various attachments for functions such as loading,sweeping, and crushing.


The strongest excavation force at the same level

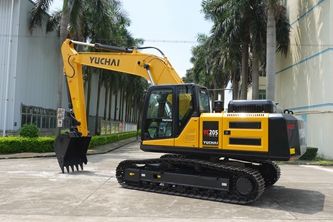

YC205 has a maximum traction force of 106.3kN, excellent hoisting capacity, and can easily lift heavy objects. The maximum digging force of the bucket is 152.6kN, and the bucket capacity is 1 m³.


The digging work is very efficient.a series of tests of high temperature and high humidity, high strength in plateau, low temperature and severe cold environment.

Brand new cab interior

The interior is ergonomically designed, the handles and switches are arranged reasonably, and the operation is natural and comfortable, which can effectively reduce fatigue.



Famous seats in the industry, with suspension damping, can adjust damping according to body weight.


Full pilot control

The driving experience is more comfortable and the excavator action is more smooth


With 1m³ bucket, it can dig quickly and level the soil with high efficiency.

YC205 has good handling performance. The pilot device can make the driver easily complete complex actions and reduce the fatigue of long-term work. A bucket of 1m³ can be selected, which has high digging efficiency and good leveling efficiency.


Easy maintenance

While the whole hood is kept, two openable side doors are added, and the three filters are centralized, so that all maintenance and inspection points are within reach.


All the main hydraulic hoses are arranged in the direction of the working device, which improves the convenience of detection and maintenance.

Specifications

Machine weight

S35 Pro 1540 Kg

S35 Max 1620KG

Bucket capacity

0.29 m³

Width of bucket

1126 m³

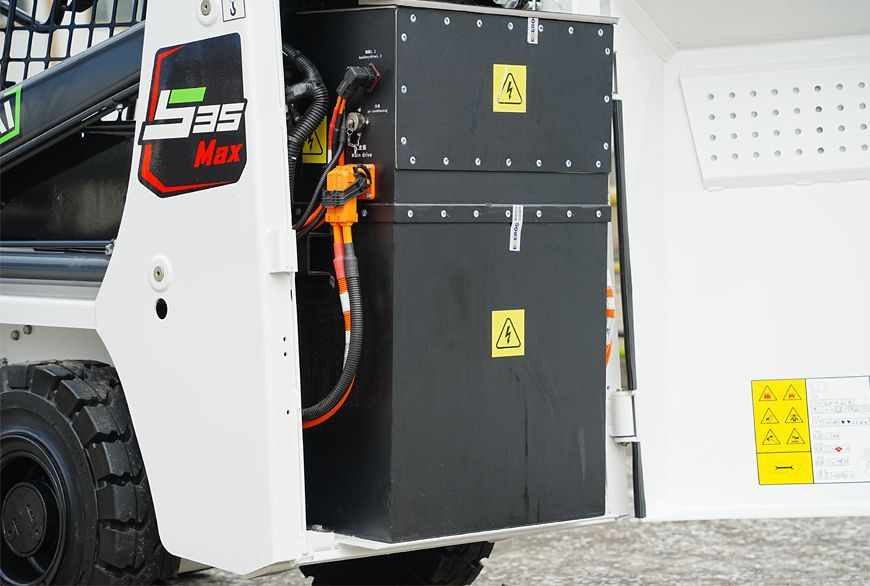

Battery

Lithium Iron Phosphate

Rated power

9 kW / 3150 rpm

4×2 kW / 3500 rpm

Max. torque/speed

70N·m/1500+4x36.8N·m/995

Battery capacity

S35 Pro 21.29 kW/h

S35Max 29.1 kW/h

Rated Operating Load

350 KG

Tipped Load

690 kg

Tipping Load

690 kg

System working pressure

20.5 Mpa

Flow Rate

33.7 L/min

Boom Breakout Force

8 Kn

Bucket Breakout Force

9 kN

Max. travel speed(low gear)

9440 mm

Max. dumping height

1.5 h

Endurance

S35 Pro 6-8 h

S35 Max 9-11h

Drive System

Wheel side motor driving

Wheel side Auto Hold

Overall operating height

3245 mm

Height to top of cab

1815 mm

Dumping angle at maximum height

25° / 22°

Ground clearance

141 mm

Wheelbase

722 mm

Overall length without standard bucket

1952 mm

Overall length with standard bucket

2682 mm

Maxium angle of flat ground

22 °

Unloading height

1850 mm

Height to bucket hinge pin

2410 mm

Loading distance at Max. unloading height

545 mm

Dumping angle at maximum height

34 °

Rollback of bucket at full height

97 °

Bucket width

1126 mm

Radius of gyration

1650 mm

Track width

756 mm

Machine width

959 mm
