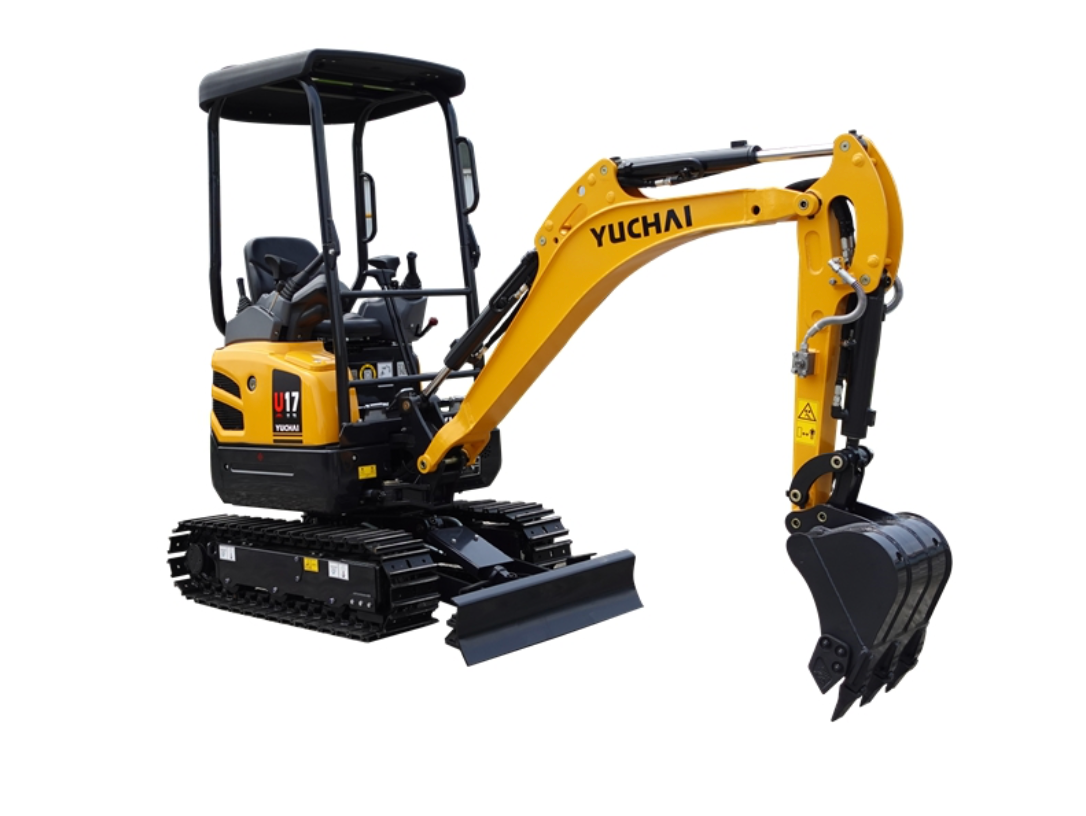

Yuchai U17

Yuchai U17 Mini Excavator is equipped with standard rubber tracks, ensuring reliable traction. It boasts exceptional uphill performance, making it suitable for various terrains. With high efficiency and low fuel consumption, it is both powerful and economical.

1. Powerful Kubota Engine
2. Exceptional Uphill Performance
3. High Efficiency and Low Fuel Consumption
4. Telescopic Chassis, Solid and Reliable
5. Swiftly Detachable Canopy
6. Easy Maintenance
7. Equipped with Standard Rubber Tracks

Standard Arm's Digging Force

5.4 kN (market-leading performance)

Dual-arm versatility

Standard/extended arm can meet the needs of different working conditions

Key specs

0.026m³ bucket |7.5~8.5 rpm swing|10.4kN bucket digging force.

Kubota engine

Kubota D722

Power 10.2/2500 (kW/ RPM)

Load sensitive system

The movement is light, swift, powerful, coordinated and efficient.

The load sensitive control system has lower power consumption and higher efficiency than conventional hydraulic system.

High efficiency and low power consumption save fuel and reduce heat of hydraulic system.

Telescopic chassis

The chassis can narrow to 1080mm at the narrowest, extend to 1400mm, and can pass through narrow passages.

Interchangeable track

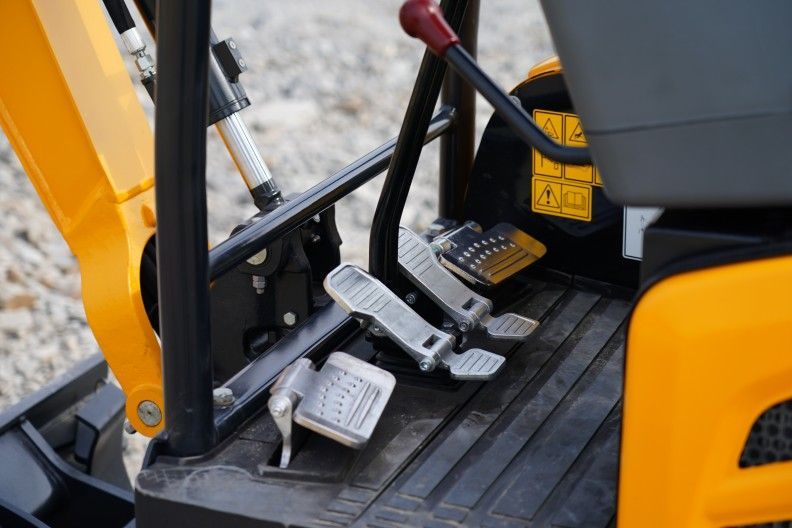

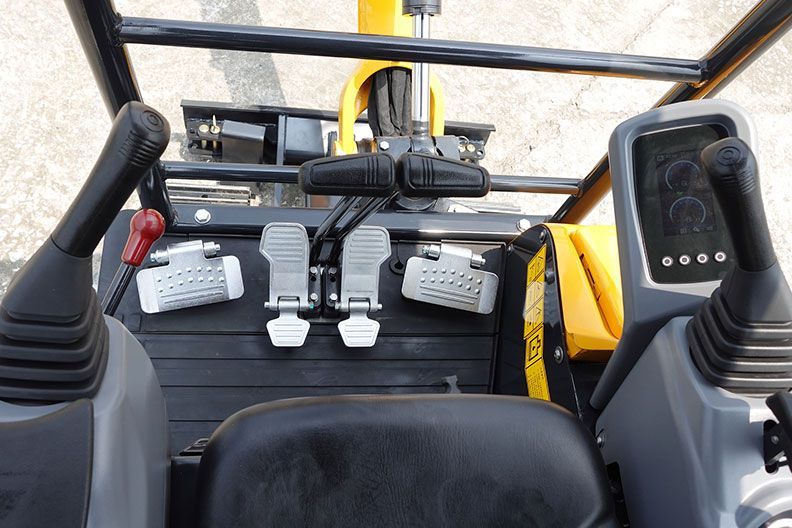

Full Pilot Control

More comfortable driving experience and smoother movement

The Boom Can Be Deflected Left and Right

Maximum left deflection angle of boom is 70°.

Maximum right deflection angle of boom is 60°.

It improves the flexibility of the excavator bucket, reduces the working space, so that the bucket can rotate when the machine body and boom remain stationary.

Interchangeable

Two columns canopy → four columns cabin. The cab is interchangeable.

Various Attachments

More than ten types of attachments

Hydraulic hammers, buckets, quick change devices, wood grabbers, simple grab pliers clearing bucket, clamshell bucket, drilling tool, lawn mower, etc.

More than 40 key working conditions are applied, with a wide range of working conditions.

Specifications
