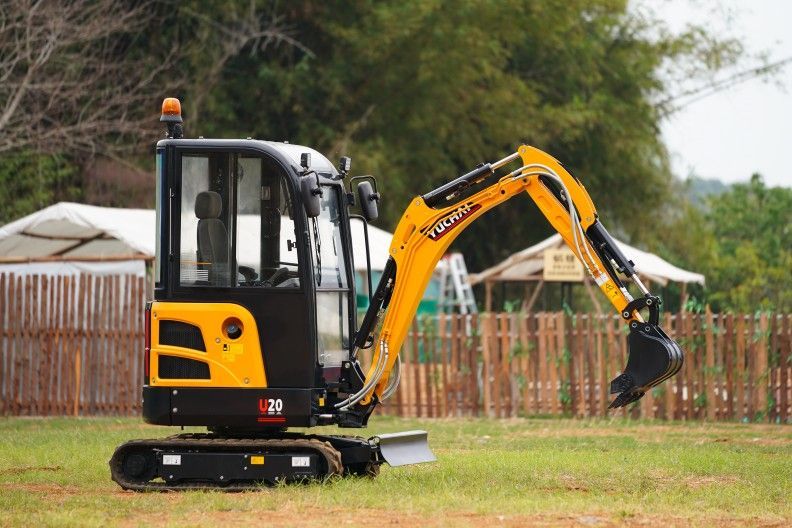

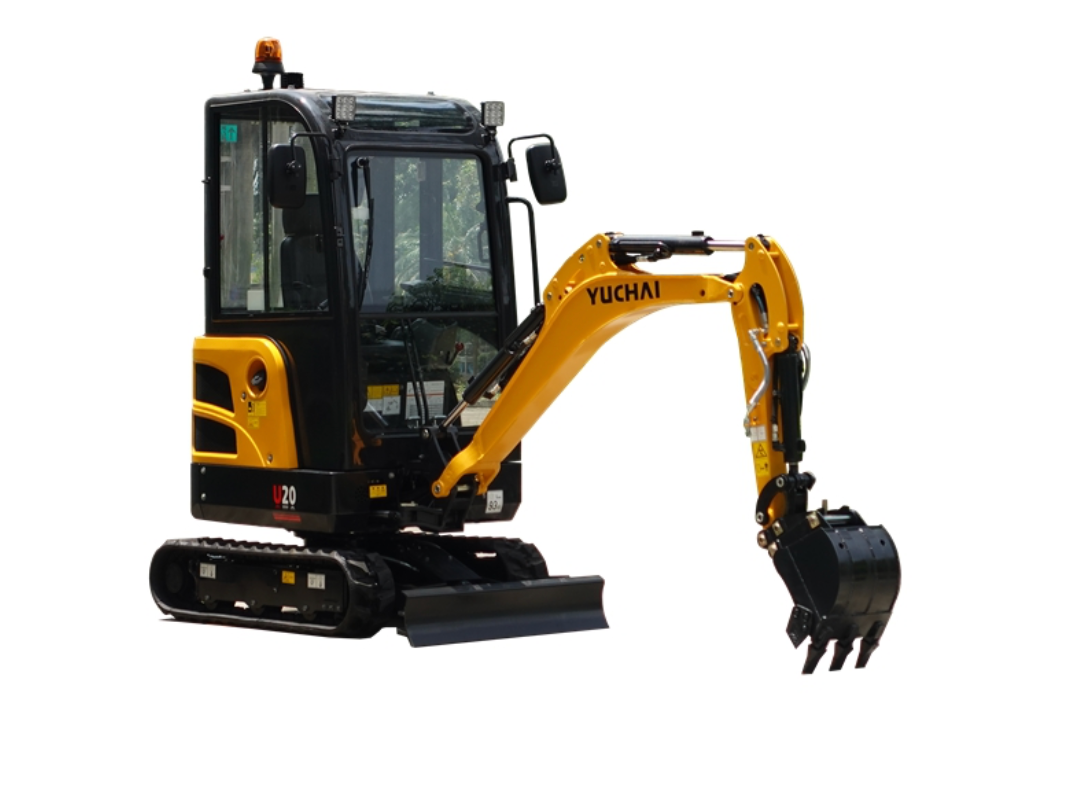

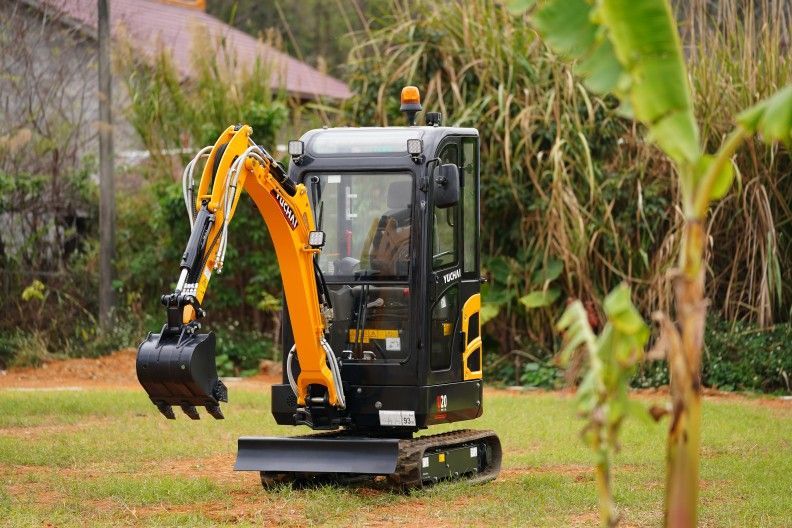

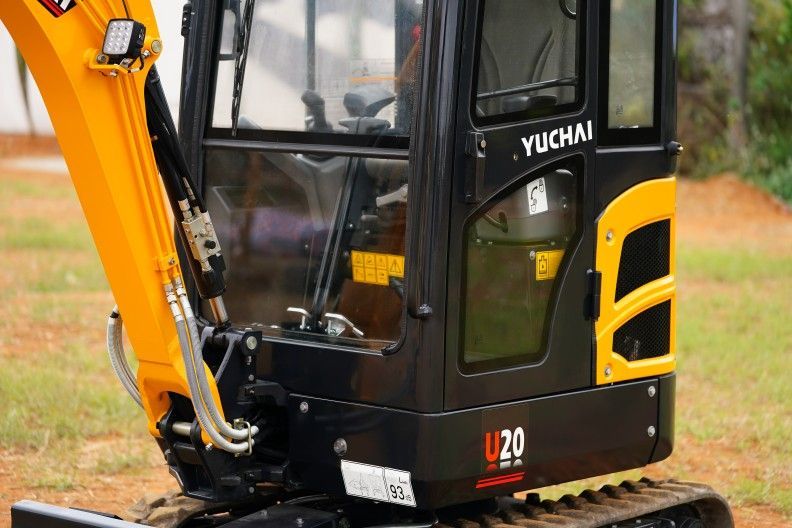

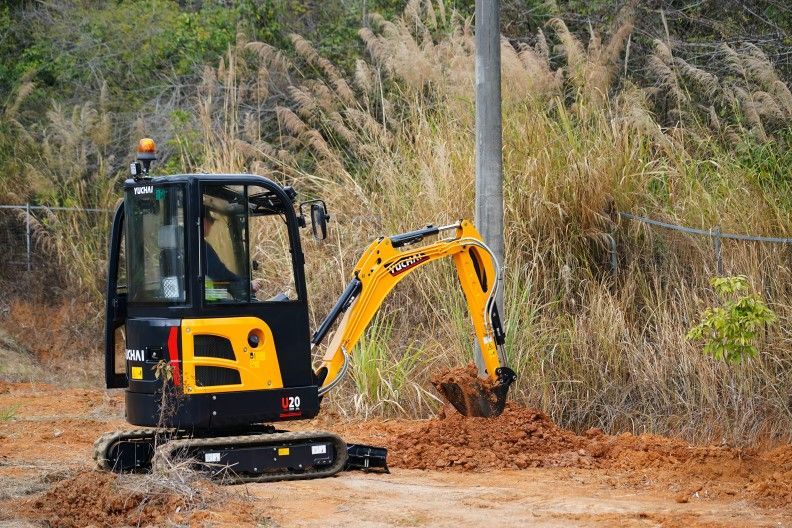

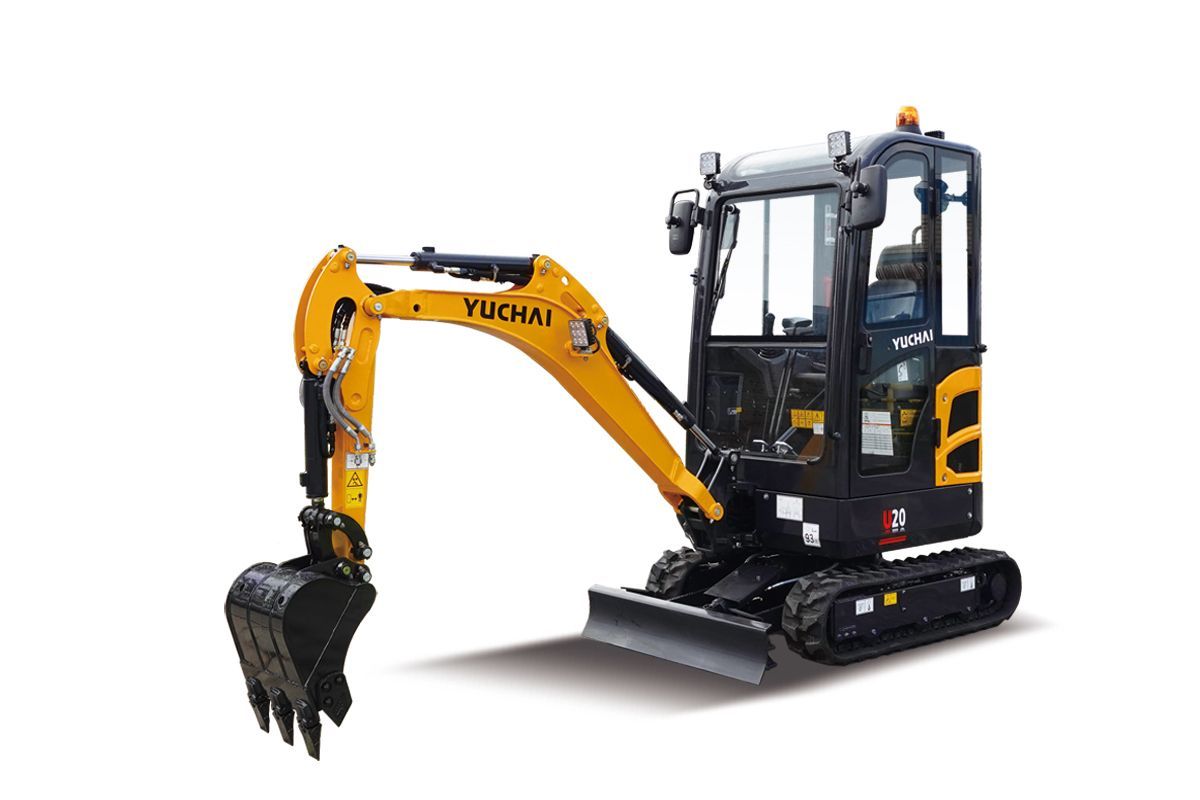

Yuchai U20 Mini Excavator is a track-type excavator featuring a telescopic chassis for enhanced versatility. Known for its low fuel consumption, this excavator is designed for efficiency. It boasts a swiftly detachable canopy, providing convenience for construction and excavation projects.

1. Machine weight: 1800kg (canopy) /2000 (cabin)
2. Max. digging force of arm: 9.5kN
3. Bucket capacity: 0.05m³
4. Width of bucket: 470mm
5. Max. Gradeability: 30°


Tailless Excavator
U20 is a Yuchai tailless excavator with a small body and retractable track range of 1080mm~1400mm, which is suitable for working in a narrow working conditions.

Strong Configuration

Full pilot operation for smooth movement and enhanced stability. Offset boom allows operation in confined spaces. Telescopic chassis. Convenient maintenance reduce costs.

Adaptability

Upper arm, deflection, tailless, interchangeable track, more than 40 kinds of attachments, two columns canopy & four columns canopy & cabin interchangeable

YANMAR engine

Load sensitive system

The movement is light, swift, powerful, coordinated and efficient.

The load sensitive control system has lower power consumption and higher efficiency than conventional hydraulic system.

High efficiency and low power consumption save fuel and reduce heat of hydraulic system.

Telescopic chassis

The chassis can narrow to 1080mm at the narrowest, extend to 1400mm, and can pass through narrow passages.

Interchangeable track

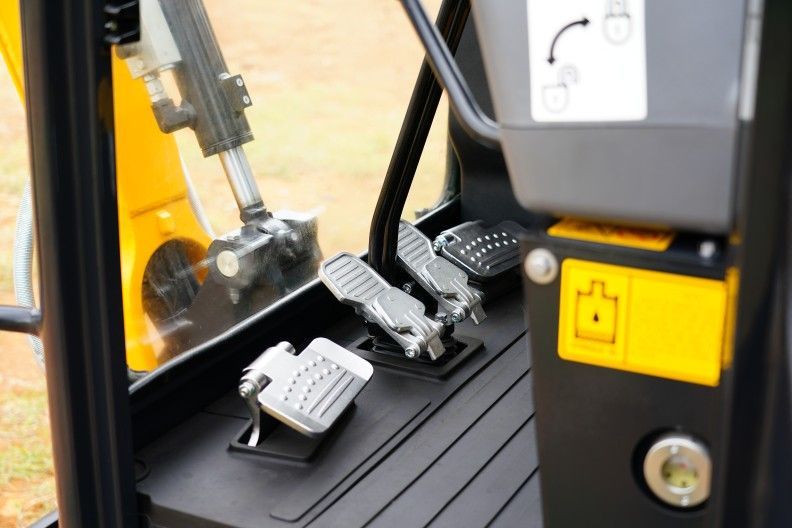

Full Pilot Control

More comfortable driving experience and smoother movement

The Boom Can Be Deflected Left and Right

Maximum left deflection angle of boom is 70°.

Maximum right deflection angle of boom is 60°.

It improves the flexibility of the excavator bucket, reduces the working space, so that the bucket can rotate when the machine body and boom remain stationary.

Interchangeable

Two columns canopy → four columns cabin. The cab is interchangeable.

Various Attachments

More than ten types of attachments

Hydraulic hammers, buckets, quick change devices, wood grabbers, simple grab pliers clearing bucket, clamshell bucket, drilling tool, lawn mower, etc.

More than 40 key working conditions are applied, with a wide range of working conditions.

Specifications
