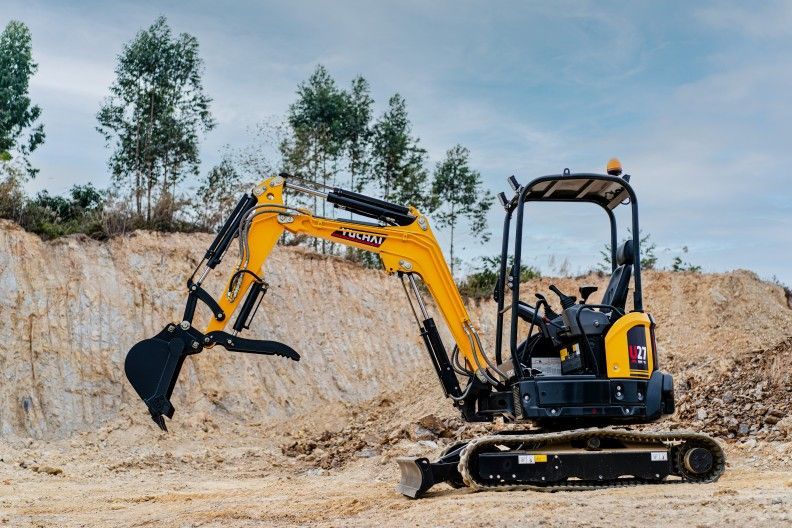

Yuchai U27

Yuchai U20 Mini Excavator is a track-type excavator featuring a telescopic chassis for enhanced versatility. Known for its low fuel consumption, this excavator is designed for efficiency. It boasts a swiftly detachable canopy, providing convenience for construction and excavation projects.

  1. Machine weight: 2600 kg
  2. Max. digging force of bucket: 23.1 kN
  3. Max. digging force of arm: 14.4 kN
  4. Bucket capacity: 0.09 m³
  5. Width of bucket: 510 mm

High Configuration

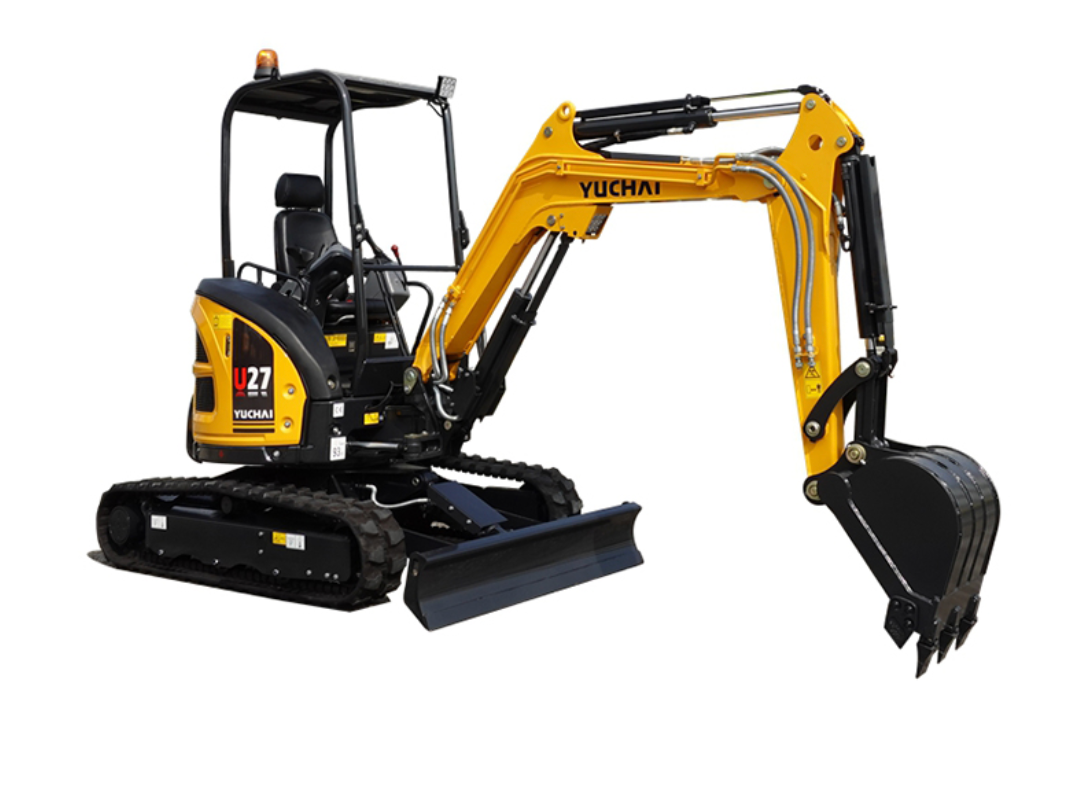

U27 is a zero tail excavator with a compact body, equipped with an international brand Yanmar engine, and a load-sensing valve.

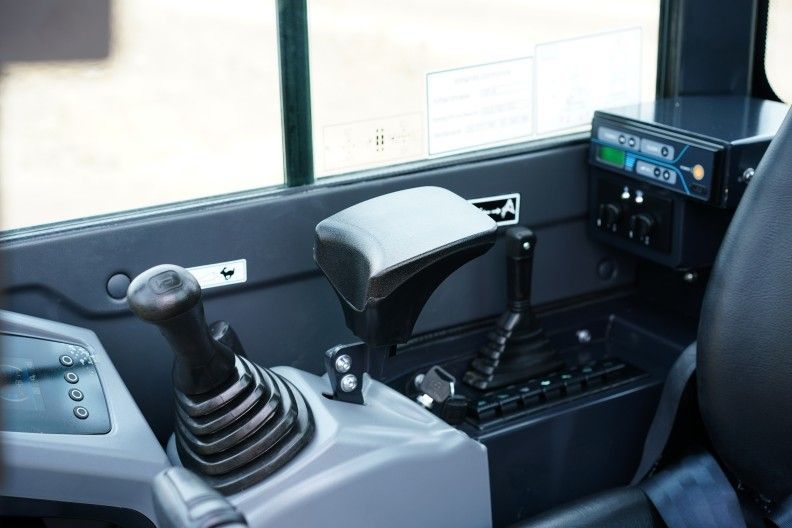

Pilot Control

With left and right pilot control operation, smooth action and better stability. Easy maintenance and low operating cost.

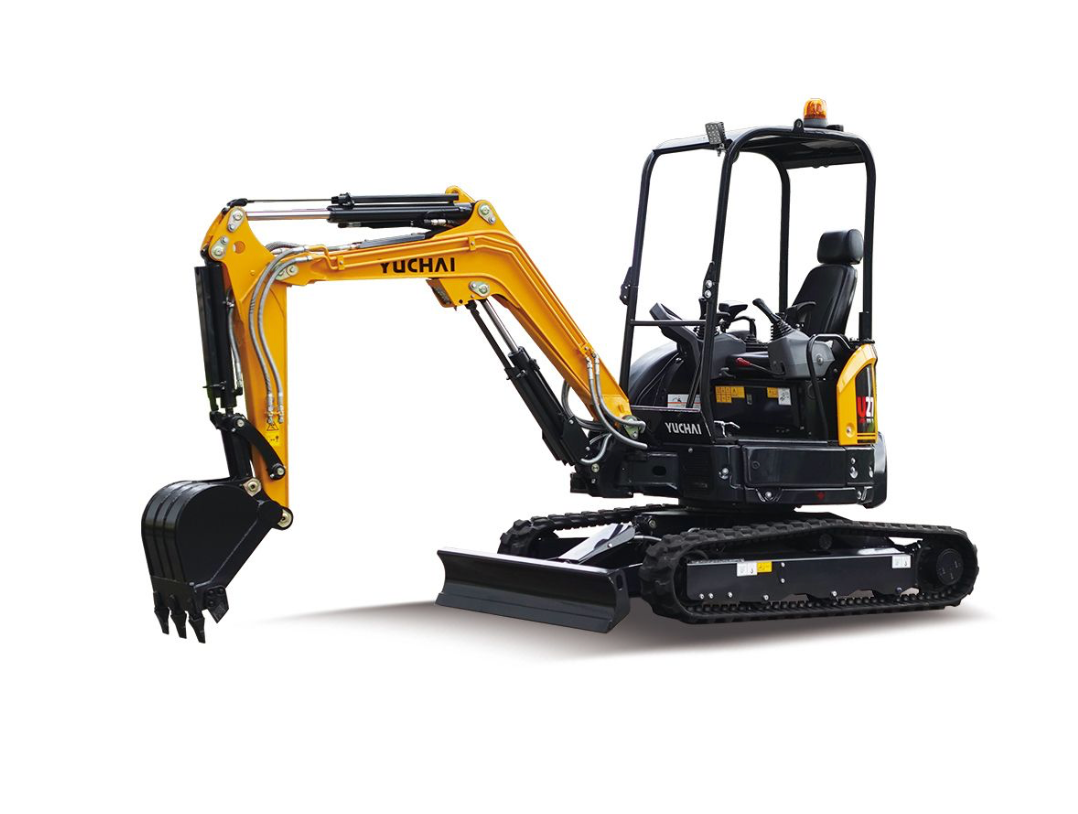

Zero Tail

The overall body does not exceed the width of both sides of the crawler, so that the excavator will not be hindered from turning when turning. Easily operate in narrow space.



YANMAR engine

Naturally aspirated engine.


Power/speed: 14.5kW/2400rpm.


Maximum torque/speed: 62.7~68.4Nm/1800rpm.


Engine with muffler. Aluminum, oil-dispersed, water-dispersed parallel radiator.



Load sensitive system

Coordinated and smooth composite action.


Precise control and easy operation.


Powerful walking mechanism ensure smooth driving.


Maintain stability without any nodding or tail-lifting phenomena.


No impact, and no abnormal noise.


Full Pilot Control

More comfortable driving experience and smoother movement


Interchangeable

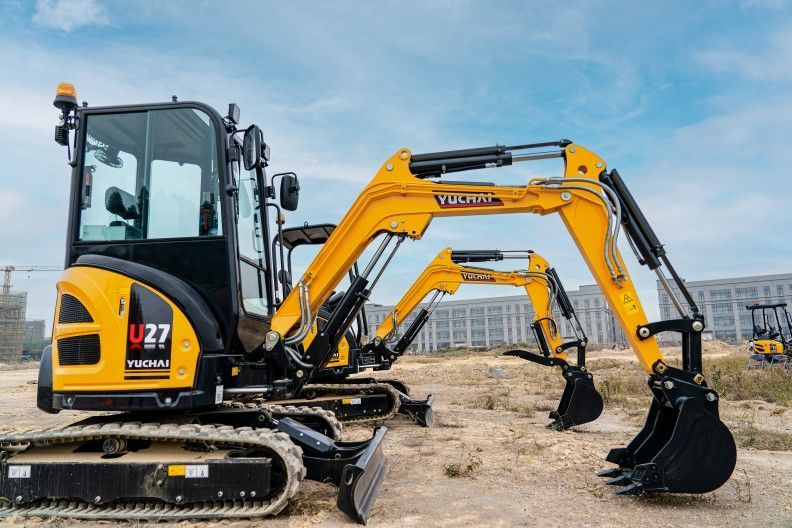

Two-column shed → four-column shed, realizing the installation and exchange of canopy and cab.


Various Attachments

More than ten types of attachments

Hydraulic hammers, buckets, quick change devices, wood grabbers, simple grab pliers clearing bucket, clamshell bucket, drilling tool, lawn mower, etc.

More than 40 key working conditions are applied, with a wide range of working conditions.


Specifications

Machine weight

2600 kg(Canopy) /

2740 kg (Cabin)

Bucket capacity

0.09

Width of bucket

510 mm

Engine model

Yanmar 3TNV80F

Engine power

15.2 kW/2500 rpm

Max. Gradeability

30°

Max. digging force of arm

14.4 kN

Max. digging force of bucket

23.1 kN

Traveling speed

2.3/4.2 km/h

Max. hauling force

26 kN

Slewing speed of platform

10~12 rpm

Max. digging height

4170 mm

Max. digging depth

2540 mm

Max. digging radius

4520 mm

Max. digging radius on ground level

4060 mm

Max. dumping height

2500 mm

Min. slewing radius

1950 mm

Max. vertical digging depth

2240 mm

Max. dozer balde heigh

340 mm

Max. dozer blade depth

355 mm

Overall length

4110 mm

Overall width

1500 mm

Overall height

2490 mm

Width of undercarriage

1500 mm

Length of track

2040 mm

Width of track

250 mm

Height between undercarriage and ground

320 mm

Height between platform and ground

525 mm

Platform tail turning radius

750 mm

Length to center of rollers

1590 mm

Fuel tank capacity

30 L

Hydraulic oil tank capacity

25 L

Track gauge

1590

Working Pressure

24 Mpa

Ground Contact Pressure

30 kPa

Arm length

1150 mm

Boom length

2020 mm
