Yuchai YC215

The Yuchai YC60 Mini Excavator is a versatile and reliable machine designed to meet the demands of various industries. Known for its compact size, fuel efficiency, and exceptional digging power, the YC60 is perfect for tight spaces, urban construction, landscaping, and small-scale excavation projects.

  1. Structural Reliability
  2. Excellent Performance
  3. Fuel saving and high efficiency
  4. Brand new large cabin
  5. Comfortable driving experience
  6. Convenient maintenance

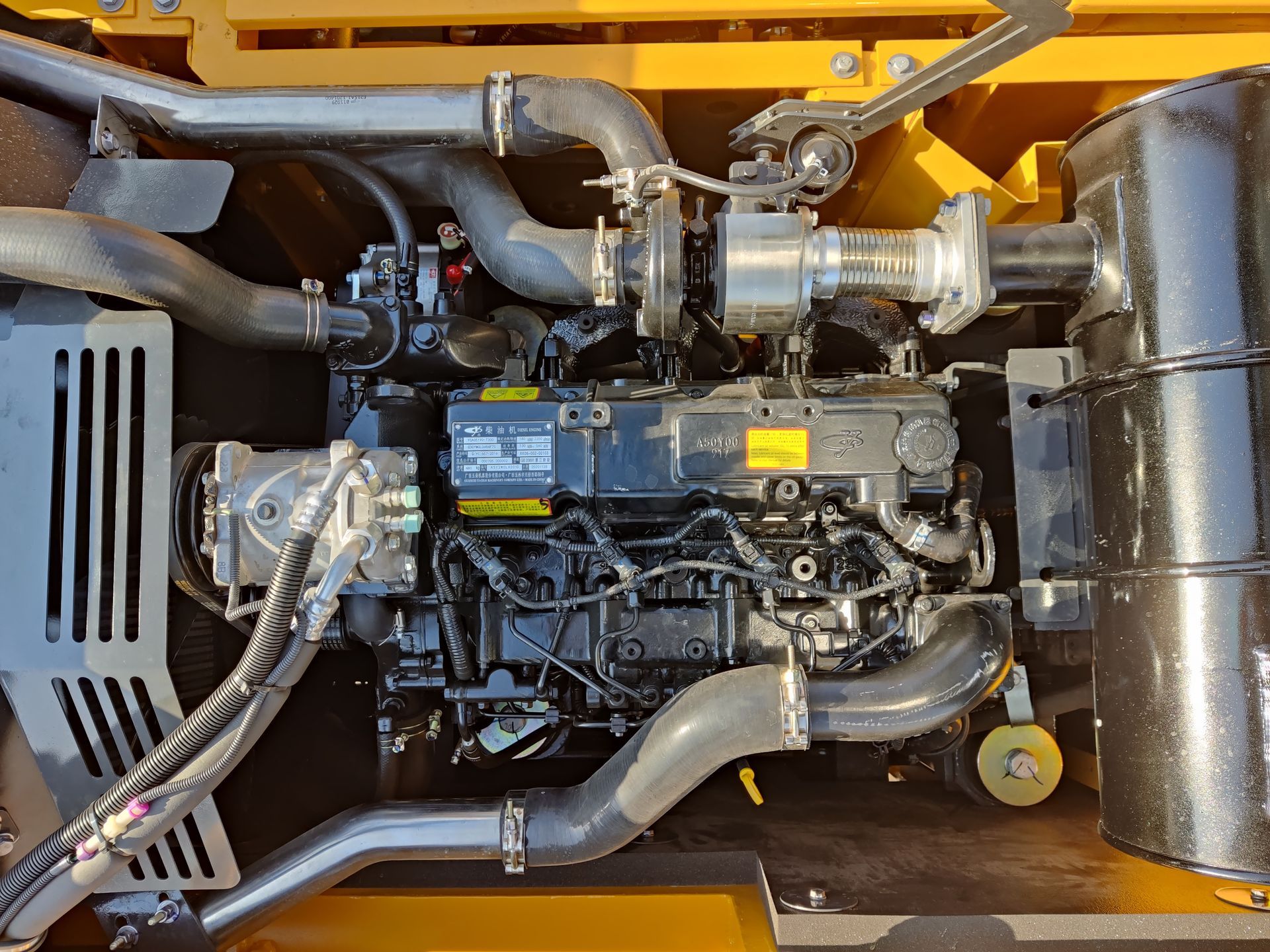

Powerful Yuchai engine
YC215 is equipped with an engine independently developed by Yuchai, which has strong torque, sufficient power reserve, low fuel consumption, fast response and better fuel efficiency.



International brand hydraulic system

The tonality of compound movements is smooth. The hydraulic valve is stable, efficient and reliable.



High strength cab

The structural beam of the cab is thickened and enlarged, which greatly improves the strength of the cab, reliably prevents falling objects and rolling injuries, and makes the driver safer.


The strongest excavation force at the same level

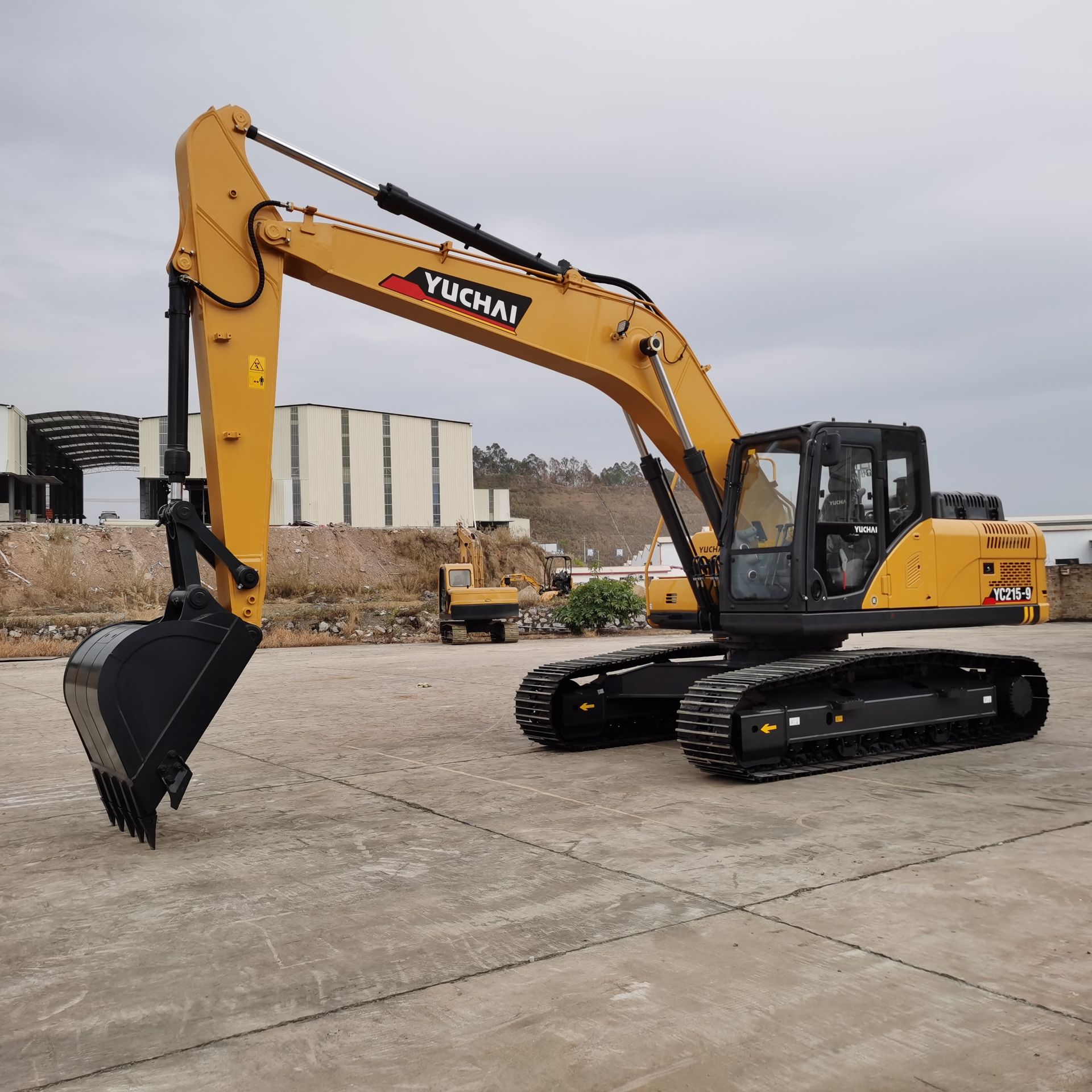

YC215-9 Midi Excavator has a maximum traction force of 195kN, excellent hoisting capacity, and can easily lift heavy objects. The maximum digging force of the bucket is 150kN, and the bucket capacity is 0.9 m. The digging work is very efficient.a series of tests of high temperature and high humidity, high strength in plateau, low temperature and severe cold environment.

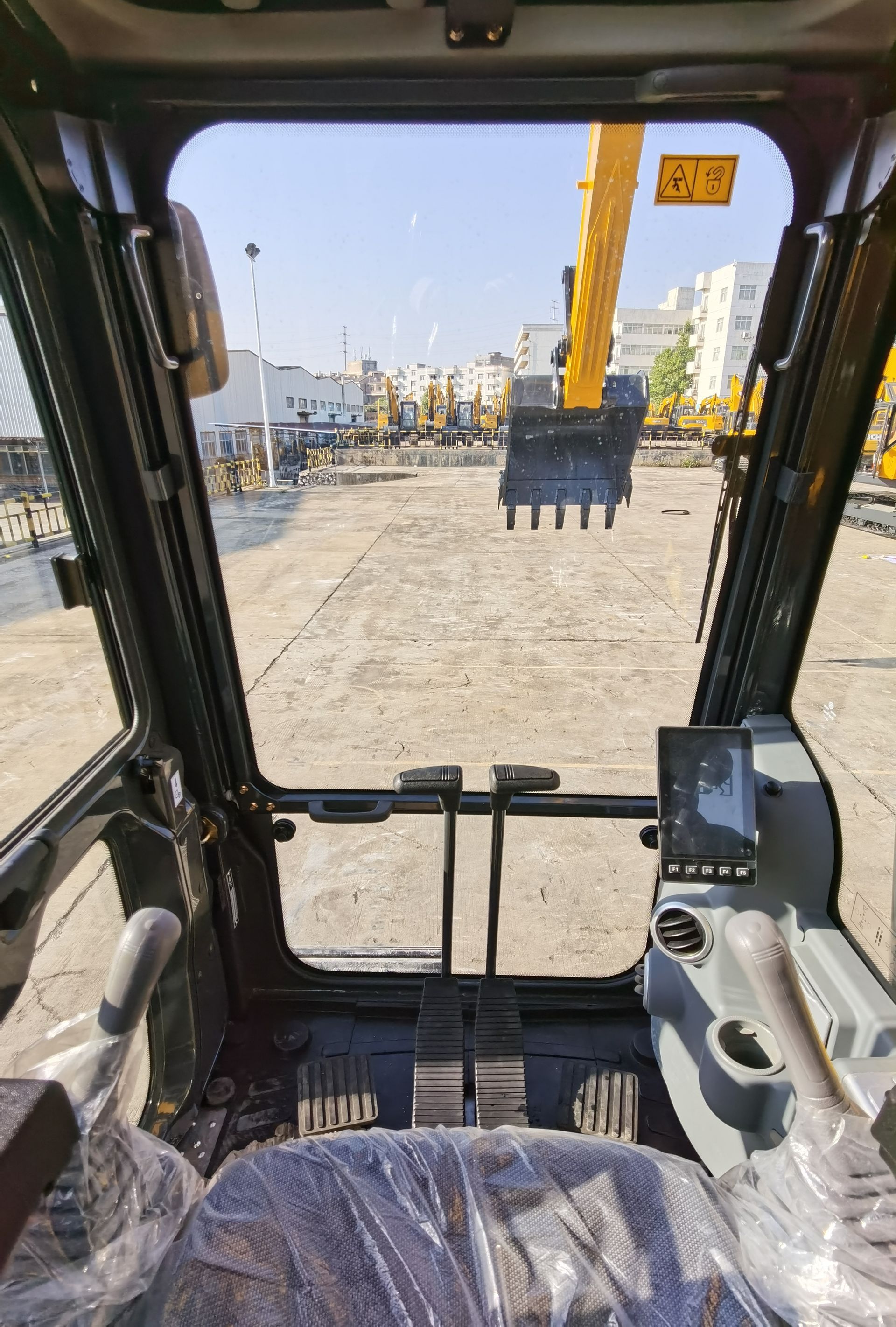

Brand new cab interior

The interior is ergonomically designed, the handles and switches are arranged reasonably, and the operation is natural and comfortable, which can effectively reduce fatigue. Famous seats in the industry, with suspension damping, can adjust damping according to body weight, and can be laid down over 135.

Full pilot control

The driving experience is more comfortable and the excavator action is more smooth

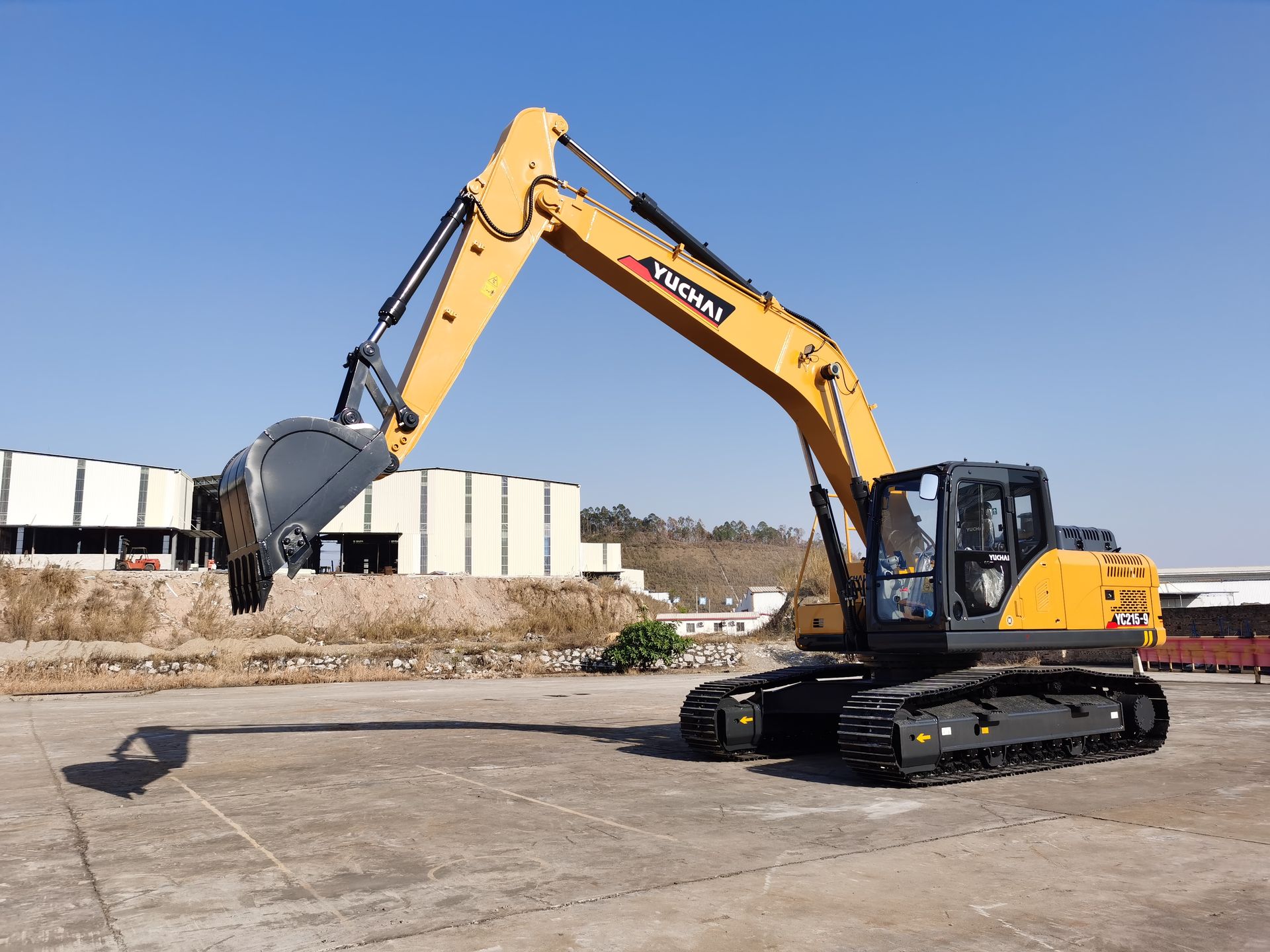

With 1.1m³ bucket, it can dig quickly and level the soil with high efficiency.

YC215-9 has good handling performance. The pilot device can make the driver easily complete complex actions and reduce the fatigue of long-term work. A bucket of 0.9~1.1m³ can be selected, which has high digging efficiency and good leveling efficiency.


Full pilot control

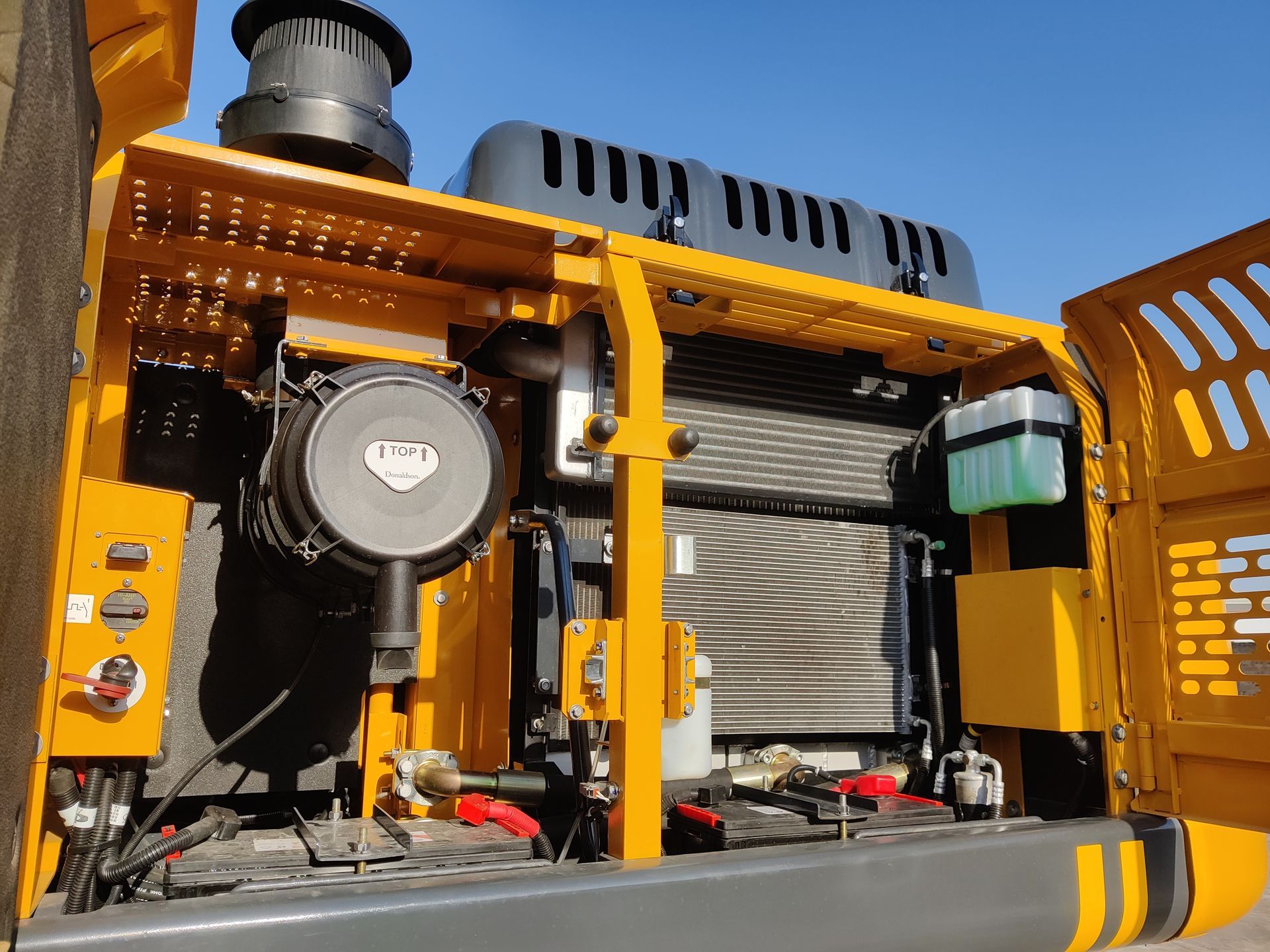

While the whole hood is kept, two openable side doors are added, and the three filters are centralized, so that all maintenance and inspection points are within reach.



All the main hydraulic hoses are arranged in the direction of the working device, which improves the convenience of detectionand maintenance.


Specifications

Machine weight

22 300 kg

Bucket capacity

0.9~1.1 m³

Width of bucket

/

Engine model

Yuchai A05

Engine power

140 kW / 2200 rpm

Max. Gradeability

35°

Max. digging force of arm

109 kN

Max. digging force of bucket

150 kN

Traveling speed

3.4/5.2 km/h

Max. hauling force

195 kN

Slewing speed of platform

11~13 rpm

Max. digging height

10 120 mm

Max. digging depth

6 584 mm

Max. digging radius

9 875 mm

Max. digging radius on ground level

9 635 mm

Max. dumping height

7 200 mm

Min. slewing radius

2 965 mm

Max. vertical digging depth

5 822 mm

Overall length

9 590 mm

Overall width

2 980mm

Overall height

3 160 mm

Width of undercarriage

2 980 mm

Length of track

4 550 mm

Width of track

600 mm

Height between undercarriage and ground

470 mm

Height between platform and ground

1 100 mm

Platform tail turning radius

2 873 mm

Length to center of rollers

3 655 mm

Fuel tank capacity

325 L

Hydraulic oil tank capacity

200 L

Track gauge

3 655 mm

Working Pressure

34.3 Mpa

Flow rate

217 L/Min
