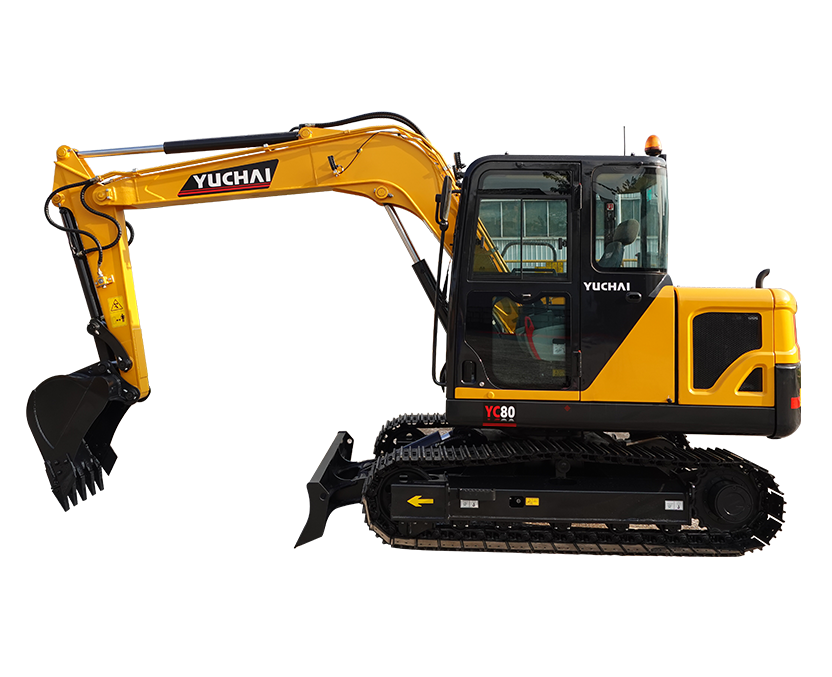

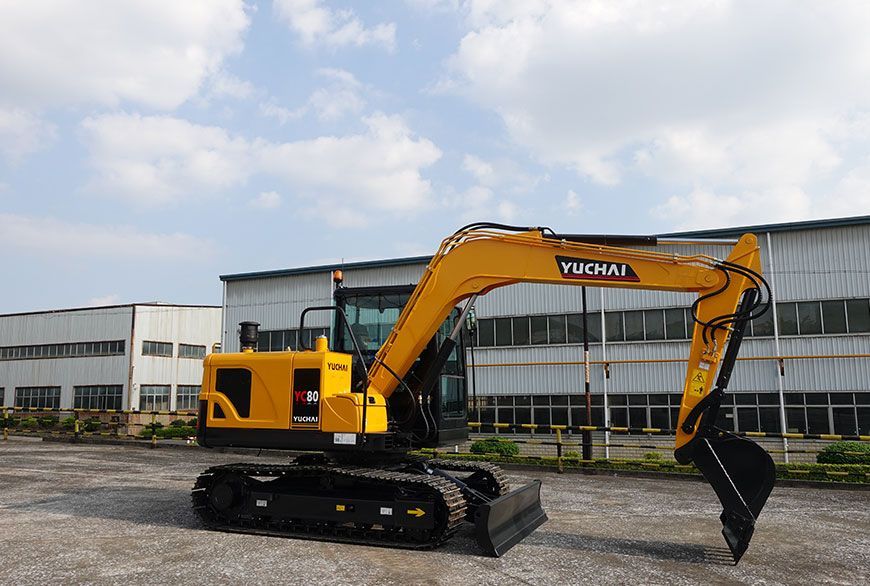

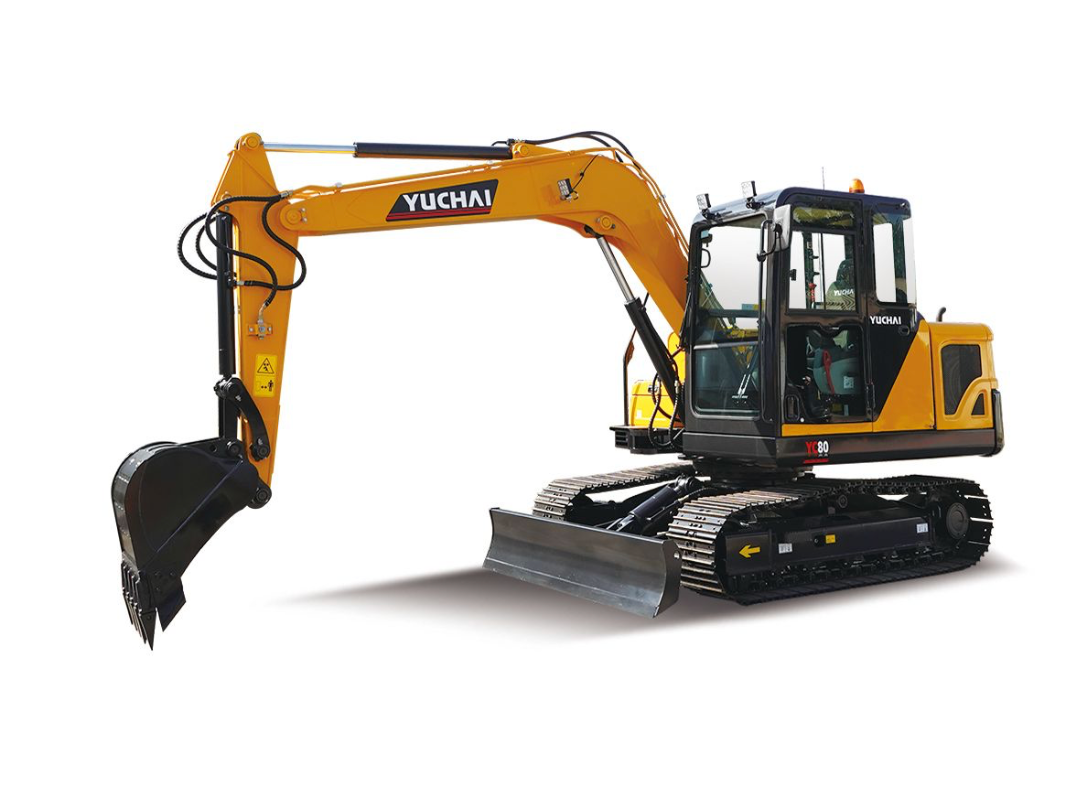

Yuchai YC80

The Yuchai YC80 small excavator combines compact size with serious jobsite capability. Designed for structural reliability and daily productivity, it offers strong breakout force, responsive hydraulics, and fuel efficient operation. With a modern, spacious cab and simplified service access, the YC80 is a practical machine for contractors who want dependable performance and easy maintenance.

1. Structural Reliability
2. Excellent Performance
3. Fuel saving and high efficiency
4. Brand new large cabin
5. Comfortable driving experience
6. Convenient maintenance

International Brand Engine
It is equipped with Yanmar 4TNV98C naturally aspirated engine, with an approved power of 44.4kW/2100rpm. Fuel-saving, low noise, sufficient power, low emission, and compliance with emission regulations.

Maximum excavation force at the same level

The maximum traction force of YC80 is 68kN, the digging force of bucket is 56KN, and the digging force of stick is 38KN, which ensures the effective exertion of strong digging force and makes the digging and hoisting more stable.

Higher energy efficiency ratio

Better fuel efficiency: In the common speed range, the average efficiency of YC80 is about 19% higher than that of the industry benchmark model

Rich apparel

Easy maintenance

While the whole hood is kept, two openable side doors are added, and the three filters are centralized, so that all maintenance and inspection points are within reach.



All the main hydraulic hoses are arranged in the direction of the working device, which improves the convenience of detection and maintenance

Lower Fuel Consumption

Optimize the blade shape to enhance the efficiency of bulldozing work. The unique design prevents soil from leaking from the upper part of the blade to the rear, significantly improving the efficiency of filling and leveling.

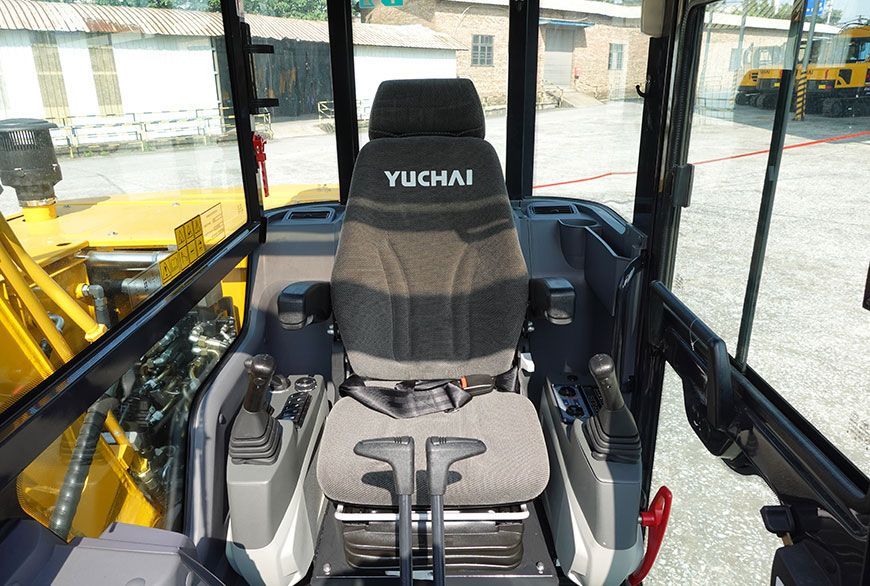

Two-way sliding seat

The interior is designed by professional ergonomics, the handles and switches are arranged reasonably, and the operation is natural and comfortable, which can effectively reduce fatigue.

Famous seats in the industry, with suspension damping, can adjust damping according to body weight, and can be laid down over 135.

The position of the seat and the control box can be adjusted independently, which can adapt to different figures or sitting positions.

Specifications
