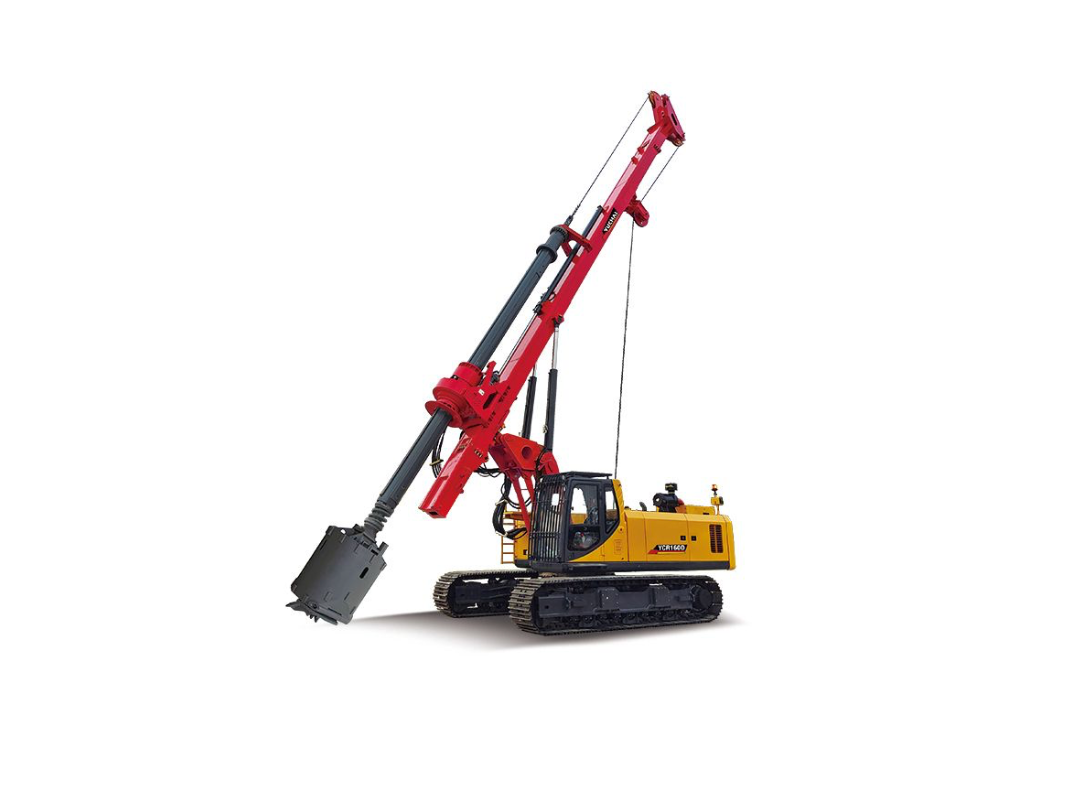

Yuchai YCR160D
As a boutique model of YuchaiHI, YCR160D rotary drilling rig has been favored by customers since launch. It is equipped with imported brand power and hydraulic system assembly. EFl large displacement technology leads to high energy efficiency, green & environmental protection, and strong power. It also has power reserve technology to meet harsh working conditions as high plateau.
More spacious and upscale cab. Better operation comfort. Better matched control of whole machine. More superior and reliable performance. More stable and safe working condition.
With self-developed machine-embedded software, advance intelligent control system, integrated circuit technology and CAN bus virtual instrumentation technology, it has fault diagnostic function, more scientific and applicable machine interface operation, and realizes automatic real-time monitoring, display and feedback in the whole construction process.

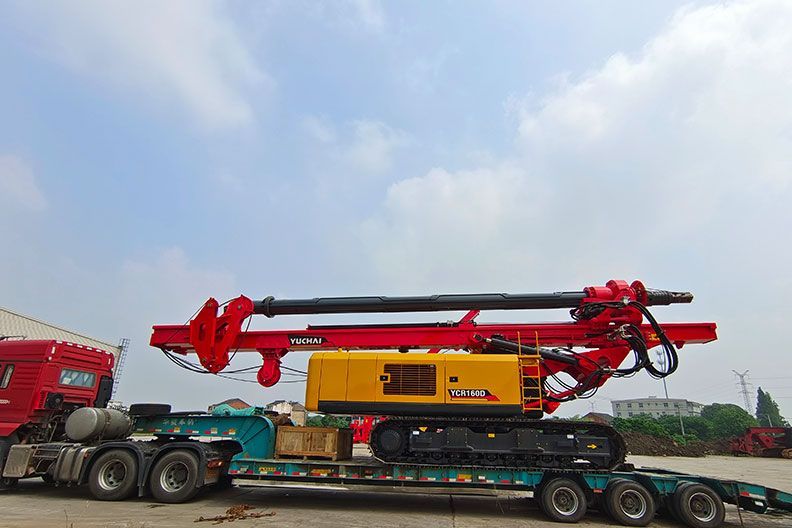

It is a new experience. Transportation with poles makes transfer flexible and convenient. It is very suitable for infrastructure construction, renovation of dilapidated buildings and other fields.
International Brand Engine
Equipped with imported Kubota V2403(30.7KW /2200rpm); Low fuel consumption, low noise, full power and low emission to meet emission regulations.
Upgrade Hydraulic System
The YC60 adopts a three-pump system imported from Japan, featuring an arm regenerative circuit for stable and coordinated operation. It is highly reliable.
Sufficient Traction
YC60 adopts imported walking motor, has strong traction force. Climbing effort up to 35 degrees. System pressure: 24Mpa; Bucket digging strength: 3.6 tons; Suitable for variety complex working conditions.
Reasonable Layout
More than 30 types of attachments, including a hydraulic hammer, bucket, quick-change device, wooden grab, simple grab pliers, ditch bucket, shell bucket, drilling tool, lawn mower, etc., are applied across more than 40 key working conditions, providing versatility in a wide range of working scenarios.
Easy maintenance
While the whole hood is kept, two openable side doors are added, and the three filters are centralized, so that all maintenance and inspection points are within reach.
All the main hydraulic hoses are arranged in the direction of the working device, which improves the convenience of detection and maintenance.
Lower Fuel Consumption
Optimize the blade shape to enhance the efficiency of bulldozing work. The unique design prevents soil from leaking from the upper part of the blade to the rear, significantly improving the efficiency of filling and leveling.
Two-way sliding seat
The interior is designed by professional ergonomics, the handles and switches are arranged reasonably, and the operation is natural and comfortable, which can effectively reduce fatigue.
Famous seats in the industry, with suspension damping, can adjust damping according to body weight, and can be laid down over 135.
The position of the seat and the control box can be adjusted independently, which can adapt to different figures or sitting positions.
Specifications
Engine Model
QSB7-C227
Engine power
169 kW / 2000 rpm
Max. output torque
165 kN•m
Rotary speed
6~30 rpm
Max.pull-down piston push
180 t
Max. pulling force
190 t
Max.pull-down piston strlke
4000 mm
Max.pulling force
175 t
Max.pulling speed
70 m/min
Wire Rope Diameter
φ26 mm
Aux winch max. pulling force
50 t
Aux winch max. pulling speed
42 m/min
Aux winch wire Rope Diameter
φ14 mm
Forwards backwards
5 °
Side backwards
±5 °
Max.Drilling Diameter
1500 mm
The max.drilling depth
50 m
Machine weight
52 t
Transporting state size
15525×3100×3550 mm
Working state size
8850×4000×16678 mm
Drill pipe configuration
MZ φ377-5×11 m
JS φ377-4×11 m
