Yuchai YC60E

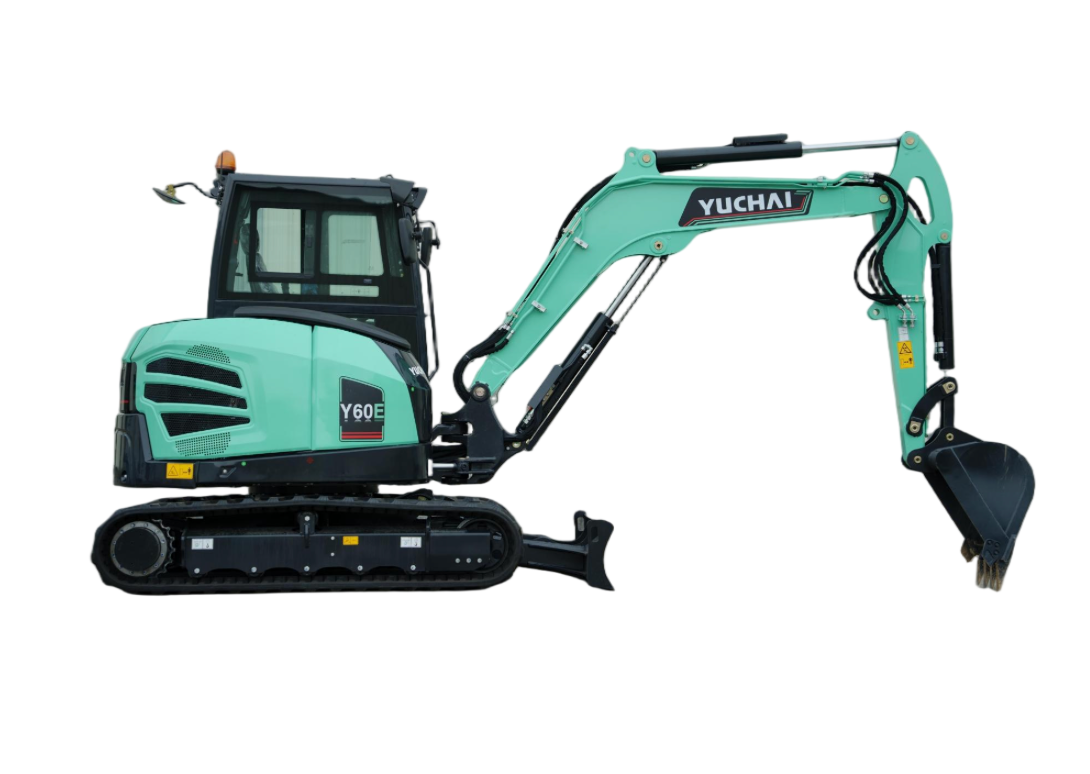

Yuchai Y60E Electric Excavator (CE ERD Certified) – Equipped with lithium iron battery for fast charging & long endurance, robust structure adapts to global job sites, FOPS/TOPS safety cabin, supports multiple attachments. Stable performance via advanced control systems.

  1. CATL battery
  2. Hepu motor
  3. Thermal management system
  4. Zero emission
  5. Low noise
  6. ISO/SAE control switch
  7. Floating bulldozer blade

International Brand Engine
Equipped with imported Kubota V2403(30.7KW /2200rpm); Low fuel consumption, low noise, full power and low emission to meet emission regulations.



Upgrade Hydraulic System

The YC60 adopts a three-pump system imported from Japan, featuring an arm regenerative circuit for stable and coordinated operation. It is highly reliable.



Sufficient Traction

YC60 adopts imported walking motor, has strong traction force. Climbing effort up to 35 degrees. System pressure: 24Mpa; Bucket digging strength: 3.6 tons; Suitable for variety complex working conditions.


Reasonable Layout

More than 30 types of attachments, including a hydraulic hammer, bucket, quick-change device, wooden grab, simple grab pliers, ditch bucket, shell bucket, drilling tool, lawn mower, etc., are applied across more than 40 key working conditions, providing versatility in a wide range of working scenarios.

Easy maintenance

While the whole hood is kept, two openable side doors are added, and the three filters are centralized, so that all maintenance and inspection points are within reach.


All the main hydraulic hoses are arranged in the direction of the working device, which improves the convenience of detection and maintenance.


Lower Fuel Consumption

Optimize the blade shape to enhance the efficiency of bulldozing work. The unique design prevents soil from leaking from the upper part of the blade to the rear, significantly improving the efficiency of filling and leveling.


Two-way sliding seat

The interior is designed by professional ergonomics, the handles and switches are arranged reasonably, and the operation is natural and comfortable, which can effectively reduce fatigue.


Famous seats in the industry, with suspension damping, can adjust damping according to body weight, and can be laid down over 135.


The position of the seat and the control box can be adjusted independently, which can adapt to different figures or sitting positions.


Specifications

Machine weight

5950 kg

Bucket capacity

0.18 m³

Width of bucket

700 mm

Battery Lithium Iron

105 kWh

Battery voltage

347.76 V

Motor power

32 kW

Standard endurance

6~8 h

Fast charging time

1 hour 30% → 80%

Slow charging time

9.5 hours 30%→ 80%

Max. gradeability

35 °

Max. digging force of bucket

45 kN

Max. digging force of arm

26 kN

Traveling speed

3.6/2.2  Km/h

Max. hauling force

61.5 kN

Slewing speed of platform

8~10 rpm

Max. digging height

5 670 mm

Max. digging depth

3 635 mm

Max. digging radius

6 190 mm

Max. digging radius on ground level

6 055 mm

Max. dumping height

4 015 mm

Min. slewing radius

2 550 mm

Max. vertical digging depth

2 985 mm

Overall length

5 545 mm

Overall width

1 960 mm

Overall height

2 550 mm

Width of undercarriage

1 960 mm

Length of track

2 500 mm

Width of track

400 mm

Minimum ground clearance

310 mm

Height between platform and ground

625 mm

Platform tail turning radius

1 210 mm

Track gauge

1 560 mm

Hydraulic oil tank capacity

17 L

working pressure

24 MPa

Flow rate

158.4  L/min

Boom length

2795 mm
