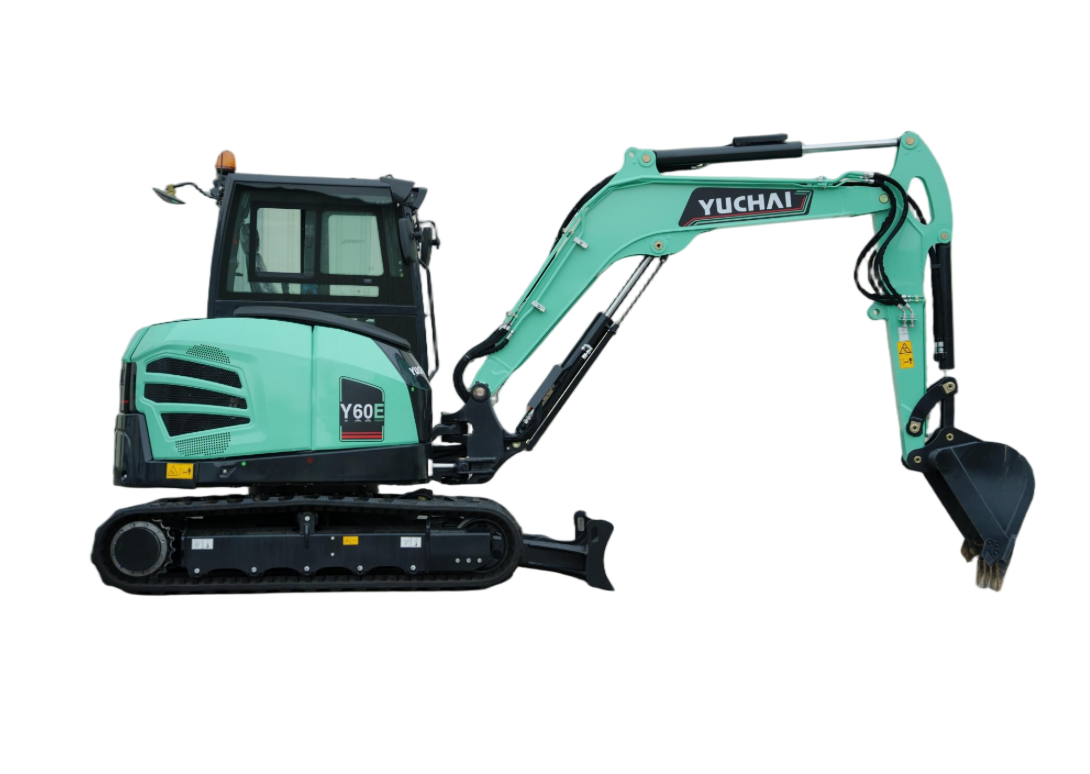

Yuchai YC60E

Pelle électrique Yuchai YC60E certifiée CE ERD, équipée d’une batterie lithium fer pour une recharge rapide et une longue autonomie. Sa structure robuste s’adapte aux chantiers à l’échelle mondiale. Cabine de sécurité FOPS et TOPS, compatible avec de nombreux accessoires. Performances stables grâce à des systèmes de contrôle avancés

  1. Batterie CATL
  2. Moteur Hepu
  3. Système de gestion thermique
  4. Zéro émission
  5. Faible niveau sonore
  6. Sélecteur de commande ISO et SAE
  7. Lame bulldozer flottante

International Brand Engine
Equipped with imported Kubota V2403(30.7KW /2200rpm); Low fuel consumption, low noise, full power and low emission to meet emission regulations.



Upgrade Hydraulic System

The YC60 adopts a three-pump system imported from Japan, featuring an arm regenerative circuit for stable and coordinated operation. It is highly reliable.



Sufficient Traction

YC60 adopts imported walking motor, has strong traction force. Climbing effort up to 35 degrees. System pressure: 24Mpa; Bucket digging strength: 3.6 tons; Suitable for variety complex working conditions.


Reasonable Layout

More than 30 types of attachments, including a hydraulic hammer, bucket, quick-change device, wooden grab, simple grab pliers, ditch bucket, shell bucket, drilling tool, lawn mower, etc., are applied across more than 40 key working conditions, providing versatility in a wide range of working scenarios.

Easy maintenance

While the whole hood is kept, two openable side doors are added, and the three filters are centralized, so that all maintenance and inspection points are within reach.


All the main hydraulic hoses are arranged in the direction of the working device, which improves the convenience of detection and maintenance.


Lower Fuel Consumption

Optimize the blade shape to enhance the efficiency of bulldozing work. The unique design prevents soil from leaking from the upper part of the blade to the rear, significantly improving the efficiency of filling and leveling.


Two-way sliding seat

The interior is designed by professional ergonomics, the handles and switches are arranged reasonably, and the operation is natural and comfortable, which can effectively reduce fatigue.


Famous seats in the industry, with suspension damping, can adjust damping according to body weight, and can be laid down over 135.


The position of the seat and the control box can be adjusted independently, which can adapt to different figures or sitting positions.


Spécifications

Poids de la machine

5950 kg

Capacité du godet

0.18 m³

Largeur du godet

700 mm

Batterie lithium

105 kWh

Tension de la batterie

347.76 V

Puissance du moteur

32 kW

Autonomie standard

6~8 h

Temps de recharge rapide

1 hour 30% → 80%

Temps de recharge lent

9.5 hours 30%→ 80%

Capacité de franchissement maximale

35 °

Force d’arrachement du godet

45 kN

Force d’arrachement du bras

26 kN

Vitesse de déplacement

3.6/2.2  Km/h

Force de traction maximale

61.5 kN

Vitesse de rotation de la plateforme

8~10 rpm

Hauteur de creusement maximale

5 670 mm

Profondeur de creusement maximale

3 635 mm

Rayon de creusement maximal

6 190 mm

Rayon de creusement maximal au niveau du sol

6 055 mm

Hauteur de déversement maximale

4 015 mm

Rayon de rotation minimal

2 550 mm

Profondeur verticale maximale

2 985 mm

Longueur hors tout

5 545 mm

Largeur hors tout

1 960 mm

Hauteur hors tout

2 550 mm

Largeur du châssis

1 960 mm

Longueur de chenille

2 500 mm

Largeur de chenille

400 mm

Garde au sol minimale

310 mm

Hauteur entre la plateforme et le sol

625 mm

Rayon de rotation arrière de la plateforme

1 210 mm

Voie de chenille

1 560 mm

Capacité du réservoir d’huile hydraulique

17 L

Pression de travail

24 MPa

Débit

158.4  L/min

Longueur de la flèche

2795 mm
